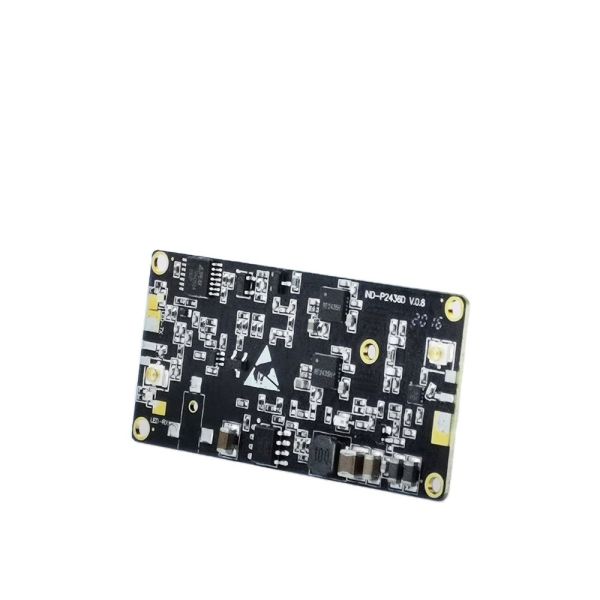

Powerful 5W 37dBm RF Signal Booster 12V PCBA for 5.8GHz & 2.4GHz Extending Wireless Range

This powerful 5W 37dBm RF signal booster PCBA is specially designed for 5.8GHz and 2.4GHz frequency bands and has a 12V power input. Its high performance can significantly extend the coverage range of wireless signals, making it ideal for drones and various wireless devices to ensure stable signal transmission in complex environments.

2.Product Specifications

No.	Items	Specifications
1	Frequency range	2400MHz-2500MHz 5800MHz
2	Gain	Receiving Gain: 17dB±1
3	Gain	Transmission Gain: 17dB ±1

3.Product Advantages

• Powerful gain (37dBm) Provides gain up to 37dBm, significantly enhancing signal strength and ensuring a clear and stable connection over long distance transmission.
• High output power (5W) With 5W output power, it effectively expands signal coverage and meets high-demand applications.
• Dual-band compatibility (5.8GHz & 2.4GHz) Supports 5.8GHz and 2.4GHz frequency bands, adapts to a variety of wireless communication needs, and provides flexible usage options.
• 12V power supply design Specially designed for 12V power input, easy to connect with a variety of devices, ensuring broad compatibility and easy integration.
• Easy to install and integrate User-friendly PCBA design makes the installation process simple and suitable for quick integration into various wireless devices and drones.

4.Product details

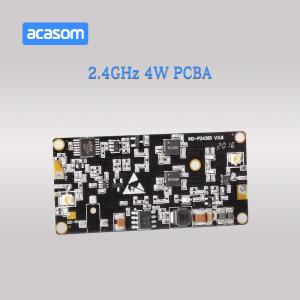

2.4GHZ
Frequency Range: 2.4~2.5GHz
Operating Voltage: 6~16V
Receiving Gain: 17dB±1
Transmission Gain: 17dB ±1
Input Trigger Power: Min:3dBm Max:20dBm
Max Output Power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V

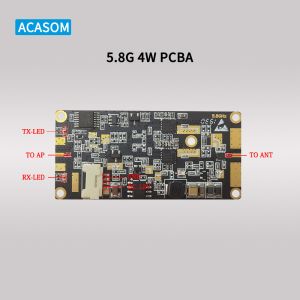

5.8GHz
Frequency Range: 5.725~5.85GHz
Operating Voltage: 6~16V
Receiving Gain: 17dB±1
Transmission Gain: 18dB ±1
Input Trigger Power: Min:3dBm Max:20dBm
Max Output Power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V

Frequency Range: 5.725~5.85GHz

Operating Voltage: 6~16V

Receiving Gain: 17dB±1

Transmission Gain: 18dB ±1

Working Band: 2.4-2.5GHz

Output Power:4W / 36dBm
