Product overview

1.Descriptions

Boost Your Signal 540mA 28dBm 12V 5.8GHz WiFi Module For Extended Coverage

This 12V 5.8GHz WiFi module, with 28dBm gain and 540mA power consumption, is designed for extending wireless signal coverage. Its high performance ensures stable signal transmission in various environments, making it ideal for enhancing home and commercial wireless networks.

2.Product Specifications

No.	Items	Specifications
1	Frequency range	5725MHz-5850MHz
2	Operating Voltage	6-18V
3	Receiving gain	17dB±1
4	Transmission gain	17dB±1
5	Max Output Power(P1dB)	36dBm(4w)
6	Input Trigger Power	Min:3dBm Max:20dBm
7	EVM	3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	＜2.5dB
9	Current Supply	540mA@Pout 28dBm 12V
10	TX/RX Switch Time Delay	＜1 μs
11	LED Indicator	Transmitter: red; Receiver: Green
12	Power Socket	2.5*0.7mm
13	Shell Material	Aluminum
14	Shell Size	64*35*13(mm)
15	Net Weight	0.15Kg

3.Product Advantages

• High Gain (28dBm) Provides up to 28dBm gain, effectively enhancing signal strength and ensuring reliable connection over long distances.
• Low Power Design (540mA) 540mA power consumption ensures high energy efficiency, suitable for long-term operation and reduced energy consumption.
• 12V Power Compatibility Supports 12V power input for easy connection with a variety of devices, ensuring wide compatibility and easy integration.
• Signal Coverage Optimization Designed to extend WiFi signal coverage, suitable for homes, offices and other places, and enhance the overall network experience.
• Easy Installation Simple design and quick installation process, no professional skills required, allowing users to easily integrate into existing networks.

4.Product details

What includes if you order this?
1PCS* 5.8GHz Booster
1PCS*5.8GHz 5dBi Antenna
1PCS*12V 1A EU/AU Adapter
1PCS* RG402 Blue Cable (20CM)

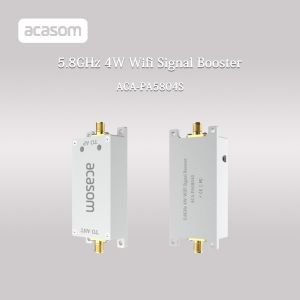

5.8GHz 4W Signal Booster FOR WiFi6
Frequency:5.725GHz-5.85GHz
RX Gain: RX=17
TX Gain: TX=17

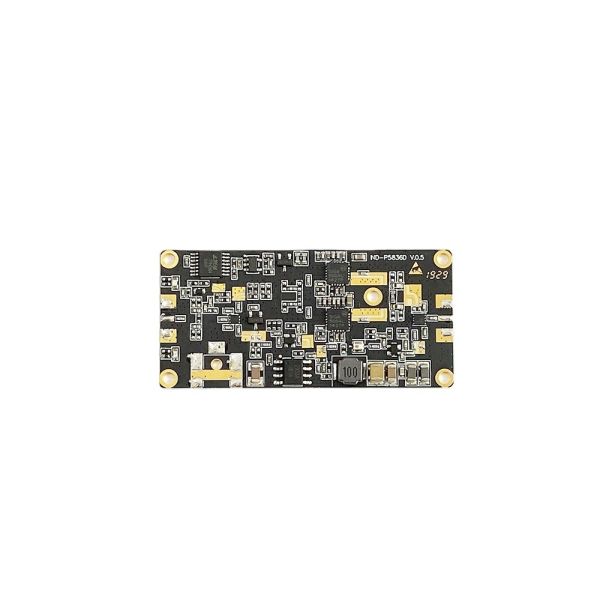

Connector Type:SMA or PCBA

Applications
IEEE 802.11 a/n/wifi6 WLAN System
Wireless Cameras Signal Extender
Drone Signal Extender
Features
50X the power, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and installing, no software is required
