Hospital Dual Frequency 2.4 5.8GHz Bidirectional Amplifier 4W With Signal Amplification

Product overview

1.Descriptions

Hospital Dual Frequency 2.4 5.8GHz Bidirectional Amplifier 4W With Signal Amplification

This 2.4GHz and 5.8GHz dual-band bidirectional amplifier specially designed for hospital environments has a powerful output power of 4W, which can significantly enhance the transmission and reception of wireless signals. Its two-way amplification function can not only expand the coverage of the signal, but also improve the signal stability and ensure the efficient operation of various wireless devices in the hospital (such as medical monitoring equipment, Wi-Fi, wireless sensors, etc.). This amplifier is tailor-made for complex medical scenarios, adapts to environments that require stable and high-bandwidth communication, and ensures seamless connections and data transmission between devices.

2.Product Specifications

No.	Items	2.4G	5.8G
	Frequency range	2400MHz-2500MHz	5.725-5.85GHz
1
2	Operating Voltage	5-16V	5-16V
3	Receiving gain	17dB±1	15dB±1
4	Transmission gain	18dB±1	18dB±1
5	Max Output Power(P1dB)	36dBm(4w)	36dBm(4W)
6	Input Trigger Power	Min:3dBm Max:20dBm	Min:3dBm Max:20dBm
7	EVM	3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	＜2.5dB	<2.5dB
9	Current Supply	540mA@Pout 28dBm 12V	580mA@Pout 28dBm 12V
10	TX/RX Switch Time Delay	＜1 μs	＜1 μs
11	LED Indicator	Transmitter: red; Receiver: Green	Transmitter: red; Receiver: Green
12	Power Socket	2.5*0.7mm	2.5*0.7mm
13	Shell Material	Aluminum	Aluminum
14	Shell Size	64*35*13(mm)	64*35*13(mm)
15	Net Weight	0.15Kg	0.15Kg

3.Product Advantages

• Dual-band support (2.4GHz & 5.8GHz) The amplifier supports two main frequency bands, 2.4GHz and 5.8GHz, ensuring that various wireless devices in the hospital can obtain enhanced signals. Whether it is a traditional Wi-Fi device or a new generation of high-speed communication equipment, you can benefit from the dual-band support of this amplifier to ensure an efficient communication experience.
• High power output (4W) The 4W high power output can significantly improve the coverage and strength of wireless signals, ensuring that strong signals can be maintained in every corner of the hospital. This is especially important for medical equipment that needs to transmit data in real time, helping to establish a reliable wireless network within the hospital.
• Bidirectional signal amplification This amplifier has a bidirectional amplification function, which not only enhances the transmit signal, but also amplifies the received signal, ensuring that the two-way communication between devices is more stable and efficient. This is particularly critical for medical equipment and monitoring systems in hospitals, ensuring the integrity and real-time nature of data.
• Reduce interference and improve stability. The optimized design of this amplifier can effectively reduce signal interference and improve the stability of wireless communications. This is crucial for medical equipment and monitoring systems that require high reliability, providing interference-free communication guarantees in signal-intensive environments such as hospitals.
• Suitable for medical environments: Designed specifically for hospitals and medical scenarios, the amplifier not only improves communication efficiency, but also ensures equipment safety and stability, adapting to a variety of complex working environments. It helps establish a stable wireless network platform within the hospital and provides strong technical support for patient monitoring, medical data transmission and communication systems.

4.Product details

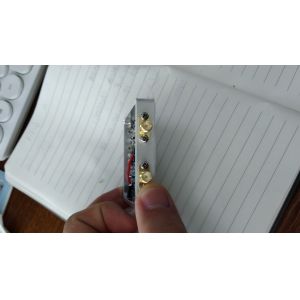

ACASOM 2.4GHz&5.8GHz 4W Signal Booster/ Extender
Working Band: 2.4-2.5GHz&5.725-5.85GHz
Output Power: 4W(36dBm)

2.4GHz&5.8GHz 4W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel
EVO2, skydio, Parrot and other drone, to make the flight range more than 10km.

ACASOM is located in the beautiful Suzhou Industrial Park, which is an enterprise specializing in the R&D, manufacturing and sales of RF and microwave products led by senior experts in the field of RF and microwave.We have been in the industry for over 15 years, headquartered in Shenzhen. It is mainly engaged in the R&D, production and sales of wireless communication products based on radio frequency and microwave technology, and provides customers with coverage solutions for wireless communication networks. The company has four product series independently developed and produced, which are: integrated base station, smart antenna, microstrip module, cavity module, etc; It is widely used in ships, hospitals, villas and other industries.
Through our continuously enhanced innovation capability and excellent user experience, ACASOM products have served more than 500 large engineering projects, and have been widely deployed and recognized by communication service providers, operators, system integrators and OEM partners in more than 30 countries. We pay attention to and actively develop new industry needs, and participate in the formulation and implementation of the industry's early plans; We will work together with our partners to find new opportunities for the new needs of the industry, develop new markets and work together.

The frequency of the company's products, mainly including high-performance time-frequency electrical system, RF connection system, RF microwave winding components, microwave chamber meter-wave components, microwave chamber meter-wave components, low-temperature electronic devices, RF coaxial switches etc., which are widely used in aerospace, satellite, radar, mobile network, broadband communication, big data, quantum communication and other edging scientific and technological fields.

ACASOM has set up an independent research and development center in Shenzhen, which is specialized in research and development of high energy microwave components, components and system integration equipment, which can meet the needs of customers in the fields of communication testing, aerospace, satellite communications, civil communications and other fields. The product has been successfully applied to many key projects and has been affirmed by customers.

Over the years, we have continued to implement the quality policy of "connect the world around you". In order to meet the strict requirements of the military market for product quality, product reliability and consistency, the production and test links of all ACASOM products adopt the world's advanced production and test equipment, including several Swiss imported automatic wire stripping machines, numerical control wire speaking machines, precision splicing machines, second order modem, spectrum analyzer, signal source, noise tester and other internationally advanced production and test equipment. All products of the company are strictly tested according to the standards, and the radio-frequency performance is the leading level in foreign and domestic industries. Excellent products and services have won wide recognition from customers.

We have a strong technical team and service support, and are committed to building turnkey solution to help customers achieve the expected goals to a greater extent. Professional customized service and three-way quality inspection have improved the stability of products to a greater extent, thus realizing sales in many countries. We will continue to provide stable and efficient hardware and technical support to customers around the world, so as to work with customers to achieve greater success.
