Product overview

1.Descriptions

4W Wifi Wireless Amplifier Router for DJI Phantom 5.8Ghz Power Range Signal Booster

The 4W Wi-Fi Wireless Amplifier Router for DJI Phantom 5.8GHz is a specialized signal booster designed to enhance the communication capabilities of DJI Phantom drones operating on the 5.8GHz frequency band. This amplifier improves both the control signal and the video transmission quality, providing drone pilots with better performance during their flights.

2.Product Specifications

Number	Items	Specifications
1	Frequency Range	5.725-5.85GHz
2	Operating Voltage	5-16V
3	ReceivingGain	15dB±1
4	Transmission Gain:	17dB±1
5	Max Output Power(P1dB)	36dBm(4W)
6	Input Trigger Power	Min:3dBm Max:20dBm
7	EVM	3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	<2.5dB
9	Current Supply	580mA@Pout 28dBm 12V
10	TX/RX Switch Time Delay	1us
11	LED Indicator	Transmitter: Green; Receiver: red
12	OperatingTemperature	-30℃~+70℃
13	StorageTemperature	-40℃~+150℃
14	Operating Humidity	Up to 95% rel. humidity
15	RF Connector	Input: SMA-Female; Output: RP-SMA-Female
16	Power Socket	2.1*0.7mm
17	Shell Size	64*35*13mm
18	Shell Material	Aluminum
19	Net Weight	0.15Kg

3.Product Advantages

• Extended Range and Coverage The 4W output allows for extended operational range, enabling drone pilots to fly farther from the controller while maintaining a strong signal. This is particularly beneficial in open areas or when capturing aerial footage over large distances.
• Enhanced Signal Quality By boosting the signal strength, this amplifier improves the overall communication quality between the drone and the remote controller. This results in fewer dropouts, reduced latency, and a more stable real-time video feed, which is critical for precise maneuvering and monitoring.
• Simple Installation Designed for easy installation, the amplifier can be quickly integrated into the DJI Phantom's existing system. Users typically do not need advanced technical skills to set it up, making it accessible for a wide range of drone operators.
• Durability and Reliability Constructed to endure various outdoor conditions, this amplifier is built to withstand the rigors of drone operation. Its durable design ensures consistent performance even in challenging environments, providing pilots with peace of mind during their flights.

4.Product details

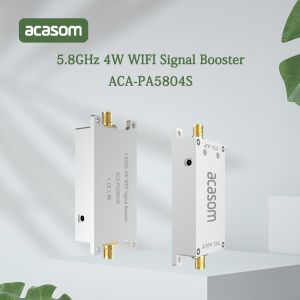

ACASOM 5.8GHz Signal Booster/ Etender

ACASOM is located in the beautiful Suzhou Industrial Park, which is an enterprise specializing in the R&D, manufacturing and sales of RF and microwave products led by senior experts in the field of RF and microwave.We have been in the industry for over 15 years, headquartered in Shenzhen. It is mainly engaged in the R&D, production and sales of wireless communication products based on radio frequency and microwave technology, and provides customers with coverage solutions for wireless communication networks. The company has four product series independently developed and produced, which are: integrated base station, smart antenna, microstrip module, cavity module, etc; It is widely used in ships, hospitals, villas and other industries.
Through our continuously enhanced innovation capability and excellent user experience, ACASOM products have served more than 500 large engineering projects, and have been widely deployed and recognized by communication service providers, operators, system integrators and OEM partners in more than 30 countries. We pay attention to and actively develop new industry needs, and participate in the formulation and implementation of the industry's early plans; We will work together with our partners to find new opportunities for the new needs of the industry, develop new markets and work together.

The frequency of the company's products, mainly including high-performance time-frequency electrical system, RF connection system, RF microwave winding components, microwave chamber meter-wave components, microwave chamber meter-wave components, low-temperature electronic devices, RF coaxial switches etc., which are widely used in aerospace, satellite, radar, mobile network, broadband communication, big data, quantum communication and other edging scientific and technological fields.

ACASOM has set up an independent research and development center in Shenzhen, which is specialized in research and development of high energy microwave components, components and system integration equipment, which can meet the needs of customers in the fields of communication testing, aerospace, satellite communications, civil communications and other fields. The product has been successfully applied to many key projects and has been affirmed by customers.

Over the years, we have continued to implement the quality policy of "connect the world around you". In order to meet the strict requirements of the military market for product quality, product reliability and consistency, the production and test links of all ACASOM products adopt the world's advanced production and test equipment, including several Swiss imported automatic wire stripping machines, numerical control wire speaking machines, precision splicing machines, second order modem, spectrum analyzer, signal source, noise tester and other internationally advanced production and test equipment. All products of the company are strictly tested according to the standards, and the radio-frequency performance is the leading level in foreign and domestic industries. Excellent products and services have won wide recognition from customers.

We have a strong technical team and service support, and are committed to building turnkey solution to help customers achieve the expected goals to a greater extent. Professional customized service and three-way quality inspection have improved the stability of products to a greater extent, thus realizing sales in many countries. We will continue to provide stable and efficient hardware and technical support to customers around the world, so as to work with customers to achieve greater success.
