    Optimize Your Video 1.2GHz VRX Notch Filter For 868/915MHz In 1.2-1.3GHz Receivers

    Ask Lasest Price
    Model Number : ACA-fli12
    Brand Name : ACASOM
    Price : $15.00/sets
    Payment Terms : T/T, Western Union
    Supply Ability : 3000
    Delivery Time : 3-5 worker days
    • Product Details
    • Company Profile

    Optimize Your Video 1.2GHz VRX Notch Filter For 868/915MHz In 1.2-1.3GHz Receivers

    Product overview

    1.Descriptions

    Optimize Your Video 1.2GHz VRX Notch Filter for 868/915MHz in 1.2-1.3GHz Receivers

    This 1.2GHz VRX Notch Filter is designed for 868MHz and 915MHz frequency bands to optimize video reception. It ensures clear and stable video signals in 1.2-1.3GHz receivers by effectively filtering out unwanted frequency interference.

    2.Product Specifications

    No.Items5.8G
    1Frequency range1.2GHz
    2Bandpass Min frequency1080MHz
    3Bandpass Max frequency1360MHz
    4VSWR≤1.5
    5Maximum Power10 watt
    6Out of band Rejection3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
    7Port ConnectorsSMA-Female and SMAMALE
    8Surface FinishBlack

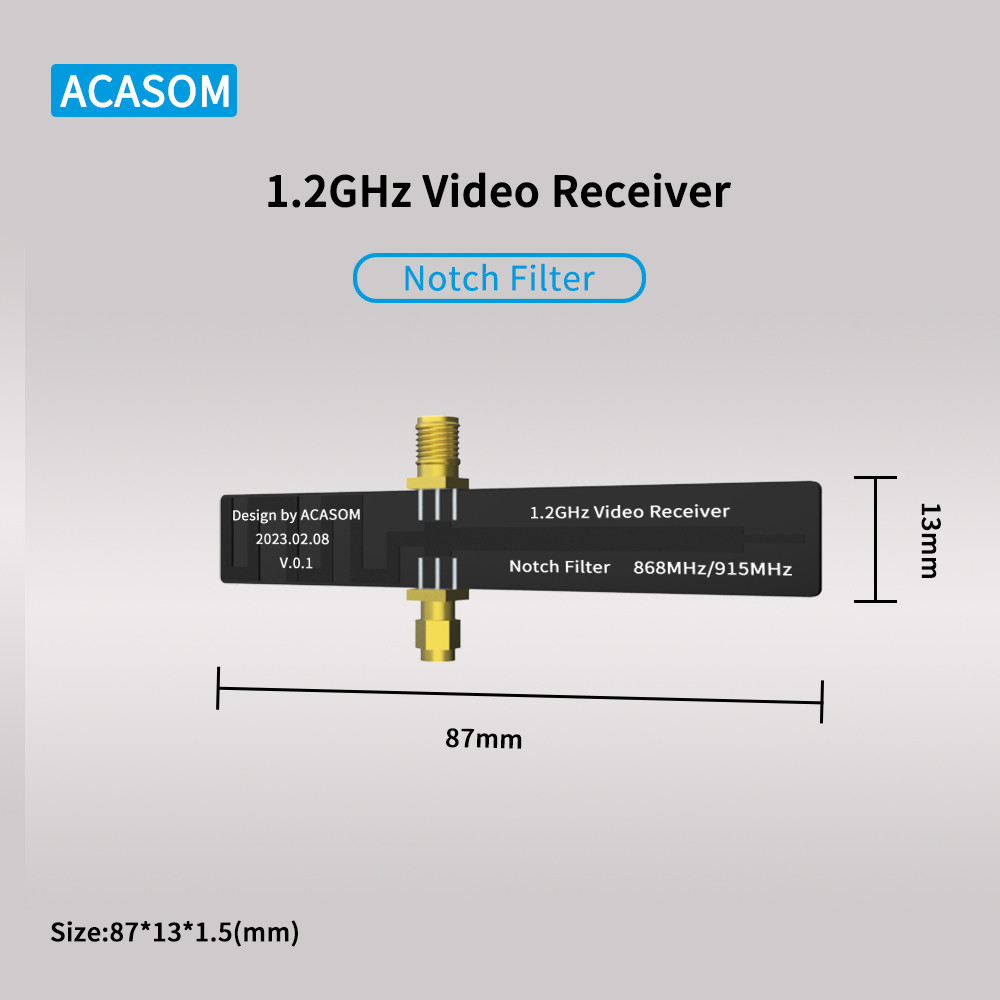

    9Size87*13*1.5mm
    10Weight

    0.1Kg

    3.Product Advantages

    • Efficient interference filtering Precisely eliminates interference in the 1.2GHz band and improves the signal quality of 868MHz and 915MHz receivers.
    • Improved video clarity By reducing noise and interference, the video signal is stable and the user's viewing experience is improved.
    • Optimized frequency selectivity Provides good frequency response to ensure effective signal transmission at critical moments and improve reception performance.
    • Durable materials High-quality construction ensures reliability and durability in various environments and is suitable for long-term use.
    • Convenient installation Compact design, easy and quick integration into existing receiving systems, convenient for users to upgrade their video reception experience.

    4.Product details

    ACASOM INDOOR 1.2GHz Video
    Receiver Notch Filter
    868MHz 915MH
    1.2GHz VRX Notch Filter improve video receiver block 868MHz
    915MHZ signal combination TBS Crossfire
    1,Ultralow Inter Loss ≤1.0dB
    2,Ultra High Out of Band Rejection
    ≥30dB@868MHz ≥30dB@915MHz

    Optimize Your Video 1.2GHz VRX Notch Filter For 868/915MHz In 1.2-1.3GHz Receivers

    1,There is no difference between the two RF ports of the

    filter. Both side can be connected to the antenna or Drone.

    2,The filter is connected between the antenna and Drone,

    or between the antenna and extender.
    Optimize Your Video 1.2GHz VRX Notch Filter For 868/915MHz In 1.2-1.3GHz Receivers
